BALL VALVES
Split Body Ball Valves
Full Welded Ball Valves
Full Welded Ball Valves
Design Standards: API 6D
Size: 2" to 48" (DN50 to DN1200)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Full bore or reduced bore, Fire Safe Design, Anti-blowout stem, Anti-static device, Cavity pressure self-relief, Double block and bleed, Valve on-off position indicator, Lock device

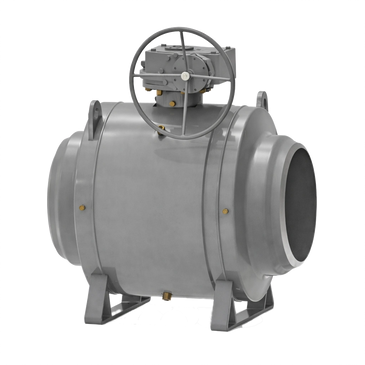

Full Welded Ball Valves
Full Welded Ball Valves
Full Welded Ball Valves
Design Standards: API 6D
Size: 2" to 56" (DN50 to DN1400)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Full bore or reduced bore, Fire Safe Design, Anti-blowout stem, Anti-static device, Cavity pressure self-relief, Double block and bleed, Valve on-off position indicator, Lock device

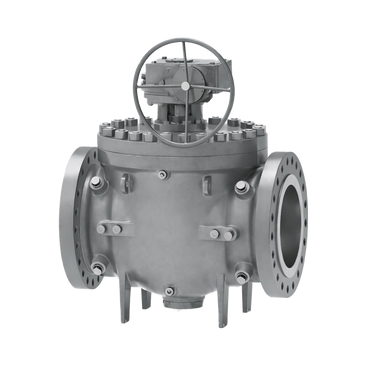

Top Entry Ball Valves
Full Welded Ball Valves
Top Entry Ball Valves
Design Standards: API 6D
Size: 2" to 48" (DN50 to DN1200)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Full bore or reduced bore, Fire Safe Design, Anti-blowout stem, Anti-static device, Cavity pressure self-relief, Double block and bleed, Valve on-off position indicator, Lock device
Floating Ball Valve
Double Block and Bleed Valves
Top Entry Ball Valves
Design Standards: ISO 17292, API 608, API 6D
Size: 1/2" to 10" (DN15 to DN250)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, BW, SW, NPT
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Full bore or reduced bore, Fire Safe Design, Anti-blowout stem, Anti-static device,
Valve on-off position indicator, Lock device

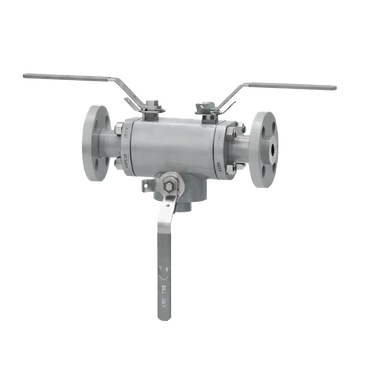

Double Block and Bleed Valves
Double Block and Bleed Valves
Double Block and Bleed Valves
Design Standards: API 6D, ASME B16.34
Size: 1/2" to 24" (DN15 to DN600)
Pressure Class.: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Full bore or reduced bore, Fire Safe Design, Anti-blowout stem, Anti-static device, Cavity pressure self-relief, Valve on-off position indicator, Lock device
