GATE VALVES

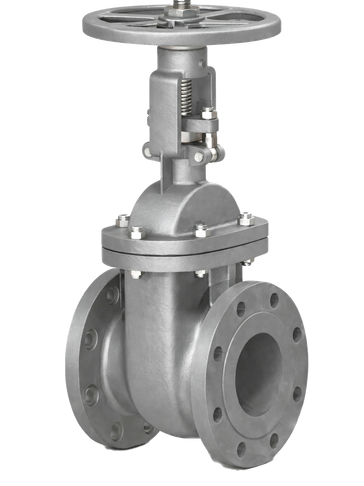

Wedge Gate Valves
Pressure Seal Bonnet Gate Valves
Double Expanding Gate Valves
Design Standards: API 600
Size: 2" to 72" (DN50 to DN1800)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Outside Screwed & Yoke , Flexible Wedge, Fire Safe Design, Low Emission Packing, Live Loaded Packing, Flexible Wedge

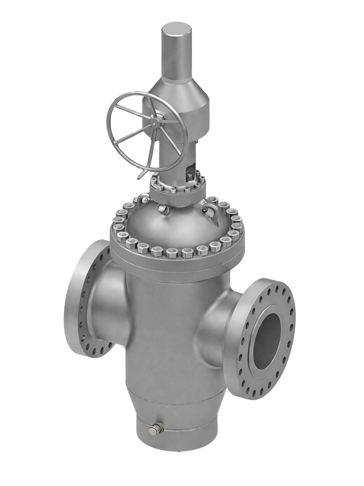

Double Expanding Gate Valves
Pressure Seal Bonnet Gate Valves
Double Expanding Gate Valves
Design Standards: API 6D
Size: 2" to 48" (DN50 to DN1200)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Double Block & Bleed, Soft Seat,
Fire Safe Design, Low Emission Packing,
Through conduit design, Piggable

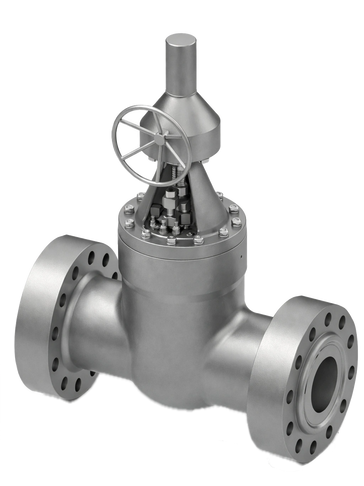

Pressure Seal Bonnet Gate Valves
Pressure Seal Bonnet Gate Valves
Pressure Seal Bonnet Gate Valves
Design Standards: API 600
Size: 2" to 24" (DN50 to DN600)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, Butt Weld End
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Outside Screwed & Yoke , Flexible Wedge, Fire Safe Design, Low Emission Packing, Live Loaded Packing, Flexible Wedge

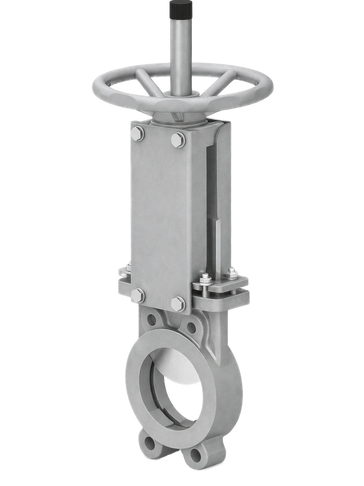

Knife Gate Valves
Forged Gate Valves
Pressure Seal Bonnet Gate Valves
Design Standards: MSS SP 81, ASME B16.34
Size: 2" to 24" (DN50 to DN600)
Pressure Class: 150 Class to 600 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex,
End Connection: Flanged, Lug, Wafer
Operation Manual, Pneumatic, Electric, Hydraulic
Features: Sharp heavy-duty knife edge at the bottom of gate cuts through solid sediments and ensures reliable shut-off, Low operating torque, Facilitates use of a smaller size actuators.

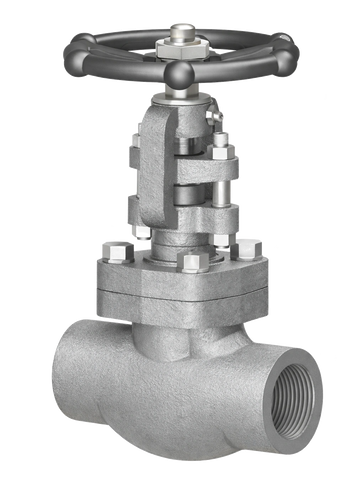

Forged Gate Valves
Forged Gate Valves
Forged Gate Valves
Design Standards: API 602
Size: 1/2" to 2" (DN15 to DN 50)
Pressure Class: 150 Class to 2500 Class
Material: Carbon steel, Stainless steel, Alloy steel, Duplex, Super Duplex
End Connection: Flanged, BW, SW, NPT
Operation: Manual, Pneumatic, Electric, Hydraulic
Features: Outside Screwed & Yoke , Solid Wedge, Fire Safe Design, Low Emission Packing, Bellow Seal, Extended Body
